Multifunction Fully Automatic Folder Gluer Four And Six Corner Box Folding And Gluing Machine 380v

Name: Multifunction Fully Automatic Folder Gluer Four And Six Corner Box Folding And Gluing Machine 380v
Brand: SUNRISE
Price: 36 USD

Buy cheap Multifunction Fully Automatic Folder Gluer Four And Six Corner Box Folding And Gluing Machine 380v product

Brand Name : SUNRISE

Model Number : SR-ZH-1100XC

Place of Origin : Zhejiang, China

MOQ : 1

Price : $36,000.00/sets >=1 sets

Supply Ability : 30 Set/Sets per Month

Packaging Details : exported wooden case

Processing Type : Paper Folder Gluing Machine

Power : 15KW

Weight : 3000 kg

Video outgoing-inspection : Provided

Model : SR-ZH-1100XC

Speed : 0-300m/min

Dimensions : 16 * 1.3 * 1.3 m

Feeding Method : Automatic continuous feeding

Applicable Adhesive : Cold glue

Box Forming : Single Side Gluing Or Both Side Gluing

Contact Now

Multifunction Fully Automatic Folder Gluer Four And Six Corner Box Folding And Gluing Machine 380v

Multifunction Fully Automatic Folder Gluer Four And Six Corner Box Folding And Gluing Machine 380v

Product Introduction:

1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.

Specification

Line Speed	0 - 300 m/min adjustable
Paperboard	210 - 600 g/m2 Paperboard compatible with E/F corrugated
Way of Folding	single side gluing or both side gluing
Paper Board Feeding	Automatic feeding
Glue Type	Cold glue
Power	15 KW AC 3 PH 380 V
Weight	3000 KG
Dimension	16 * 1.3 * 1.3 m

Multifunction Fully Automatic Folder Gluer Four And Six Corner Box Folding And Gluing Machine 380v

Box type	A	B	(C MIN)	(D MIN)

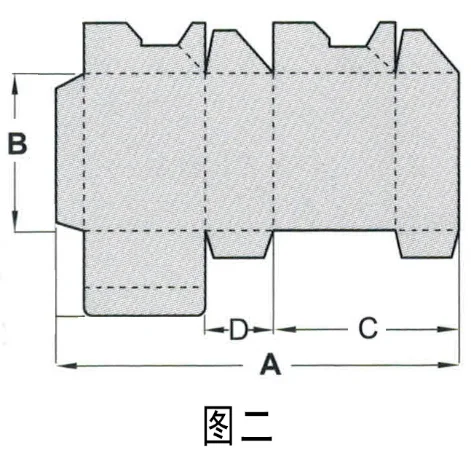

Side-glue box	180 - 1100 mm	100 - 700 mm	100 mm	50 mm
Pre-fold box	200 - 1000 mm	100 - 700 mm	100 mm	50 mm
Crash lock bottom box	200 - 1000 mm	100 - 700 mm	100 mm	50 mm

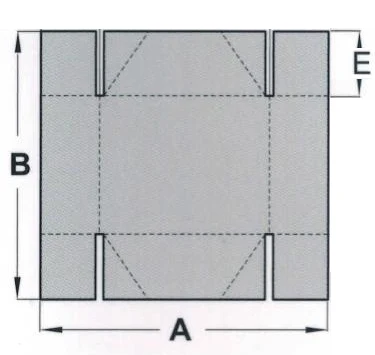

4 corner box	200 - 900 mm	200 - 600 mm	E : 30 - 100 mm

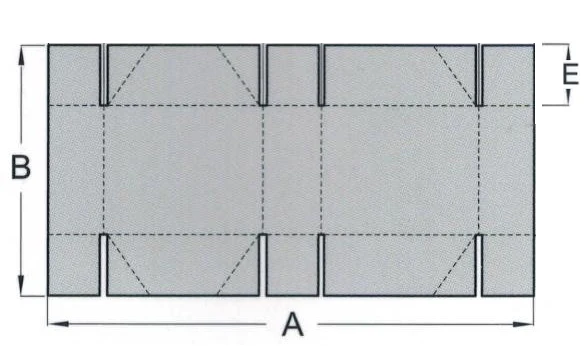

6 corner box	300 - 900 mm	200 - 600 mm	E : 30 - 100 mm

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

Aligner Section The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

Pre-Folding Section The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.

Multifunction Fully Automatic Folder Gluer Four And Six Corner Box Folding And Gluing Machine 380v

Crash Lock Bottom Section A complete set of front flap bottom locking device and servo anti-hook device to ensure accurate bottom locking action.The segmented upper belt board,combined with a special design,can be adjusted by expansion and contraction according to the needs of the product.

4 and 6-Corner Back Hook Anti-hook specially equipped for four-hexagonal boxes.
